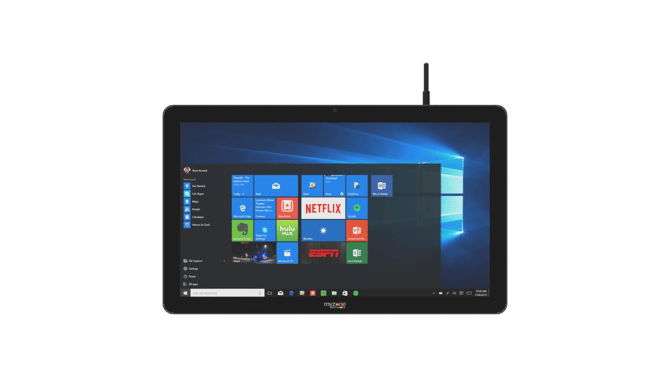

The Myzone PC is designed to be run in your gym environment as an All-in-One solution. Simply connect the power supply and Myzone Receiver.

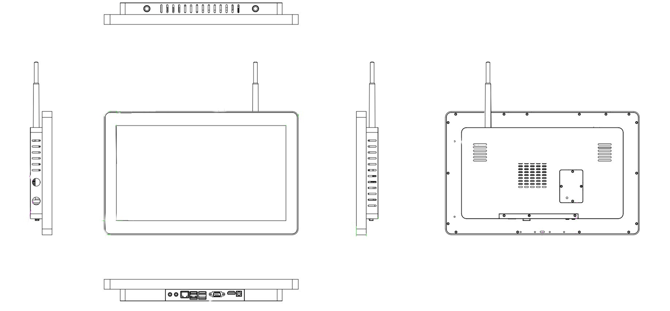

There are VESA mounting holes at the back for easy installation.
Device Specifications
Screen
| Item | Details |
|---|---|
| Screen Size | 15.6" |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Active Display Area | 344.16 × 193.59 mm |
| Viewing Angle | H: 178° / V: 178° |
| Touch Technology | 5‑point capacitive touch |
CPU & System
| Item | Details |
|---|---|
| CPU | Intel 3865U |
| Base Frequency | 1.8 GHz |
| CPU Cache | 2 MB |
| BIOS | AMI 16 MB UEFI BIOS |
| RAM | 8 GB Dual Channel (2 × DDR4 2400 MHz, Max 32 GB) |
| Storage | SATA 3.0 – 120 GB SSD |
Operating System
| Item | Details |
|---|---|
| OS | Windows 11 IoT 2021 LSTC |
Graphics & Display Output
| Item | Details |
|---|---|
| GPU Chipset | Intel HD Graphics 610 |
| DisplayPort | DP 1.2 |
| HDMI | HDMI 1.4 |
Audio
| Item | Details |
|---|---|
| Codec | Realtek HD ALC662 |
| Speaker | 3 W × 2 |
Networking
| Item | Details |
|---|---|
| Ethernet Controller | Intel i211 — 10/100/1000 Mbps |
| Ethernet Ports | 2 × RJ45 |
| Wake on LAN | Yes |
| Wi‑Fi / Bluetooth | IEEE 802.11a/b/n/ac, Bluetooth 4.0 |
Slots
| Item | Details |
|---|---|
| Storage Slot | 1 × SATA 3.0 |
| SIM Slot | 1 × SIM Card Slot |
Housing & Buttons
| Item | Details |
|---|---|
| Material | Metal housing with matte black paint |
| Buttons | Metal power button & reset button (silver with blue light) |
Rear I/O Panel
| Item | Details |
|---|---|
| USB 2.0 | 1 |
| USB 3.0 | 3 |
| Audio | Line‑out ×1, Mic‑in ×1 |
| LAN | 1 × Gigabit LAN (10/100/1000 Mbps) |
Hardware Monitoring
| Item | Details |
|---|---|
| Sensors | CPU temperature, voltage sensor, watchdog, Plug and Start |
Included in the Box
- Touchscreen PC
- Power adaptor
- Power cable
Power
| Item | Details |
|---|---|
| Consumption | 18W / 15W / 36W (model dependent) |
| Input Options | 12V 1.5A, 12V 1.25A, 12V 3A (various configurations) |
Operating Environment
| Condition | Range |
|---|---|
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating Humidity | 20%–80% |
| Storage Humidity | 10%–95% |
Other
| Item | Details |
|---|---|
| Language | Multi‑language |
| VESA | VESA 100 (for 15.6") |
Product Dimensions & Weight
| Item | Details |
|---|---|
| Boxed Dimensions | 45 × 32 × 13 cm |
| Boxed Weight | 4.05 kg |
