How do I set up my Myzone Mini PC?

What you will need;

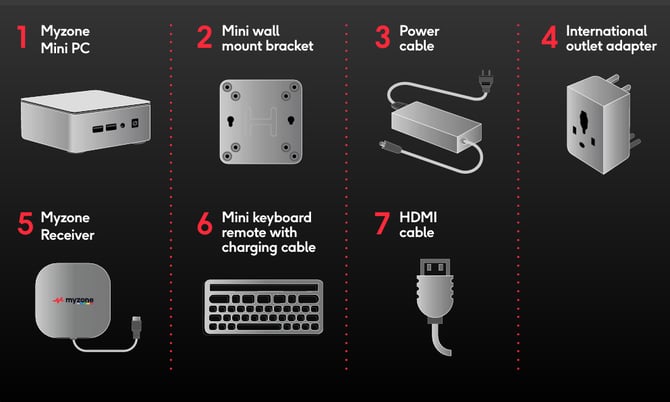

The Mini PC, Wall mount bracket, Power Cable, HDMI cord and Mini Keyboard will be received in one box.

The Myzone Receiver will be a separate box.

In addition, you will need an international outlet or international outlet adapter.

Follow these steps to install your Myzone Mini-PC:

1. Take all items of the box. Attach the power cable to the Mini-PC and plug the power cable into the power outlet closest to your TV. You may need to attach your region's power outlet adapter.

2. Connect the Myzone Mini-PC to the HDMI port on your TV using the cable provided.

3. Connect the Myzone receiver's USB cable to the Myzone Mini-PC's USB port. The receiver should be mounted 8-10 feet on the wall. It must not be obstructed in any way - do not mount the receiver behind the TV or on the ceiling.

4. Make sure the Myzone Mini-PC is powered on. You will see a blue light on the unit - The Mini-PC must remain plugged into an outlet 24/7.

5. Turn on the wireless keyboard remote by switching on the power button located on the side of the keyboard. The keyboard is controlling the Myzone Mini-PC if the light on the keyboard is blue. If the light is yellow, or flashing blue, try turning off and then back on. You can also try stepping off to the side of the TV so that the keyboard has better connection to the PC. Keyboards are specific to the Myzone Mini-PC they come with so ensure they did not get mixed up with your other wireless mini keyboards.

If it is not working, make sure the dongle for the keyboard is plugged into the Mini PC.  It looks like a USB plug in the PC. If you do not see this, check the back compartment of your  keyboard for the dongle.

6. Using the mini keyboard, click on the WIFI icon located at the bottom right corner of your screen. Connect to your WIFI network.

7. Open TeamViewer on your Mini-PC's desktop and contact Myzone Technical Support by phone or email clubsupport@myzone.org and provide your TeamViewer ID# to complete the last step of licensing.

How to Display Different Content Across Two TV Screens

If your gym has two TV screens and you would like to show different content on each screen, you can do this by using two separate outputs from the Mini PC - the HDMI and the DisplayPort outputs.

For example, you may want to display Myzone Live tiles on one screen and class content on the other. To set this up, connect one screen using the HDMI output and the second screen using the DisplayPort output. Each output should be connected to its own TV with the appropriate cable.

In this setup, the HDMI cable connects the Mini PC to one TV, while the DisplayPort cable connects the Mini PC to the second TV. This allows each screen to display different content at the same time.

**Important:** Do not use an HDMI splitter for this setup. An HDMI splitter will duplicate the same content across both screens rather than allowing different content to appear on each one
